Datos del producto:
|

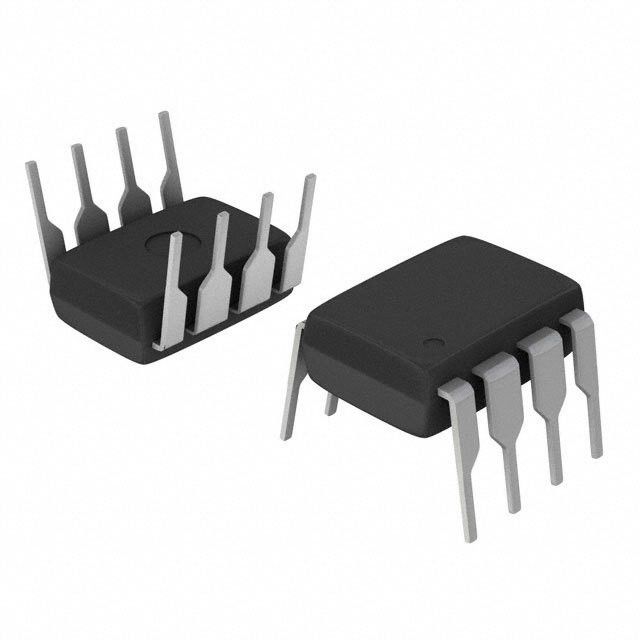

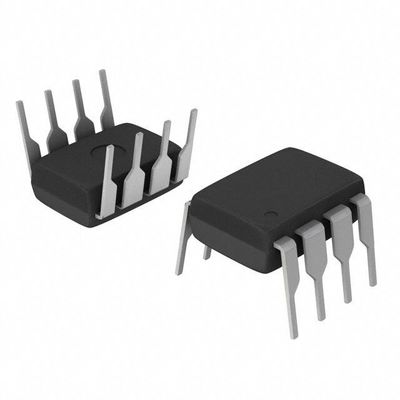

| Número de parte: | PS9613-A | Fabricante: | Cel |
|---|---|---|---|
| Descripción: | COLECTOR ABIERTO 8DIP DE OPTOISO 5KV | Categoría: | Aisladores ópticos - salida de la lógica |
| Familia: | Aisladores ópticos - salida de la lógica |
| Part Status | Obsolete |
|---|---|
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 15mA |
| Data Rate | 1Mbps |
| Propagation Delay tpLH / tpHL (Max) | 750ns, 500ns |
| Rise / Fall Time (Typ) | - |
| Voltage - Forward (Vf) (Typ) | 1.65V |
| Current - DC Forward (If) (Max) | 25mA |
| Voltage - Supply | 4.5 V ~ 30 V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
